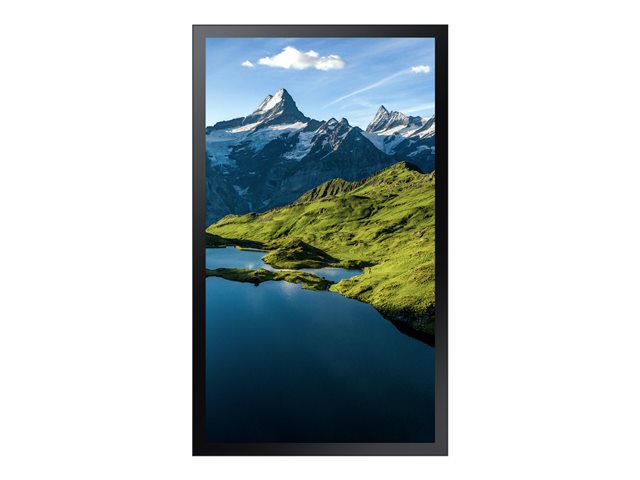

TieDex UK Samsung OH75A OHA Series - 75" Class (74.5" viewable) LED-backlit LCD display - 4K - outdoor - for digital signage

Samsung OH75A - 75" Diagonal Class (74.5" viewable) - OHA Series LED-backlit LCD display - digital signage outdoor - full sun - Tizen OS - 4K UHD (2160p) 3840 x 2160 - Direct LED - black

Basic Specifications

Manufacturer's Part Number

LH75OHAEBGBXEN

EAN

8806092748798

Product Type

LED-backlit LCD flat panel display - outdoor

Weight

134 kg

Product Description

Samsung OH75A OHA Series - 75" Class (74.5" viewable) LED-backlit LCD display - 4K - outdoor - for digital signage

Model

Samsung OH75A

Colour

Black

Manufacturer Warranty

3-year warranty

LCD Backlight Technology

Direct LED

Resolution

3840 x 2160

Image Aspect Ratio

16:9

Power Consumption Operational

471 Watt

Display Format

4K UHD (2160p)

USB

Yes

Commercial Features

Visible with Polarised Sunglasses, MagicInfo S7 Player

Dimensions (WxDxH) - without stand

177.48 cm x 13 cm x 105.34 cm

Diagonal Class

75"

Included Accessories

Remote control

Connectivity

LAN

Video Interface

HDMI

Commercial Use

Digital signage

Platform

Tizen OS

Diagonal Size

74.5"

PC Interface

DisplayPort

TV Tuner

No tuner

Smart

No

Display Resolution

4K Ultra HD (2160p)

Picture Enhancements

72% Colour Gamut

Storage Capacity

8 GB (system 3.88 GB + available 4.12 GB)

Sun Exposure

Full sun

General

Product Type

LED-backlit LCD flat panel display

Power Consumption Operational

471 Watt

Power Consumption SDR (On mode)

471 kWh/1000h

Diagonal Class

75"

Diagonal Size

74.5"

Commercial Use

Yes - digital signage

Series

OHA Series

Outdoor

Yes

Sun Exposure

Full sun

Platform

Tizen OS

Operating System

Tizen OS 5.0

TV Tuner

No tuner

TV Tuner Presence

No

Video Interface

HDMI

PC Interface

DisplayPort

Picture Enhancements

72% Colour Gamut

Protection

Dustproof, weatherproof, magic protection glass

Dimensions

Without stand

Width

177.48 cm

Depth

13 cm

Height

105.34 cm

Weight

134 kg

Enclosure Colour

Black

Power

Power Device

Power supply

Power Consumption Sleep

0.5 Watt

Dimensions & Weight (Shipping)

Width (Shipping)

193.2 cm

Depth (Shipping)

36.7 cm

Height (Shipping)

125.1 cm

Weight (Shipping)

150 kg

Environmental Parameters

Min Operating Temperature

-30 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 80% (non-condensing)

Miscellaneous

Compliant Standards

UL, CB, IEC 60950-1, EN 60950-1, IK10, EMC Class A, HDCP 2.2, IP56

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Network & Internet Multimedia

Connectivity

LAN

Stands & Mounts

Flat Panel Mount Interface

260 x 1118.4, 870 x 1118.4

VESA Compatibility

Yes

Connections

Connector Type

2 x HDMI input ¦ DisplayPort input ¦ USB 2.0 ¦ Audio line-out ¦ RS-232 input ¦ RS-232 output ¦ LAN input ¦ LAN output

Remote Control

Type

Remote control

Battery Included

Yes

Media Player

Supported Video Formats

H.264, HEVC, VP9, VP8, AVS+, SHVC

Supported Audio Formats

AC3

USB Port

Yes

USB Ports Qty

1

Configuration

ARM Cortex-A72 Quad-Core ( 1.7 GHz ) - 2.5 GB LPDDR4 - 8 GB (system 3.88 GB + available 4.12 GB)

Display

Pixel Pitch

0.43 mm

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

LCD Backlight Technology

Direct LED

Coating

1% haze

Image Contrast Ratio

1200:1

Brightness

3500 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Response Time

14 ms

Commercial Features

Visible with Polarised Sunglasses, MagicInfo S7 Player

Operation Hours / Days

24 / 7

Features

Pivot, SSSP 7.0, 1.07 billion colours
